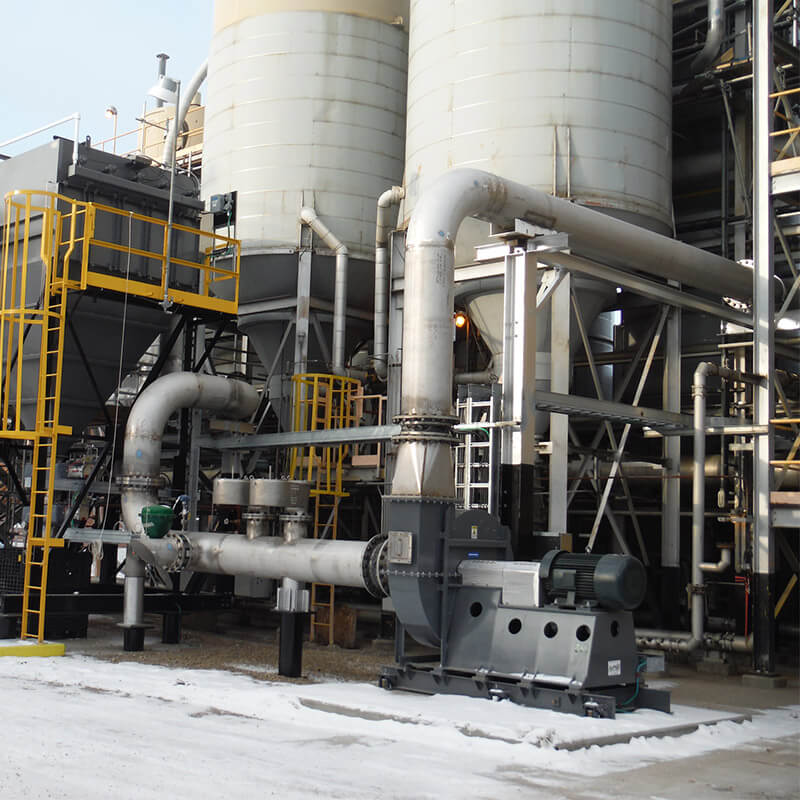

Industrial fan sizing involves much more than selecting a fan that can move a specified volume of air. The fan must produce the required airflow while overcoming the resistance of the entire system, operating efficiently, and remaining within a stable portion of its performance curve.
When one of those factors is overlooked, a fan that appears adequate on paper may deliver disappointing performance after installation. Understanding the most common industrial fan sizing mistakes can help engineering, maintenance, and purchasing teams identify problems before they become expensive equipment or process issues.
Key Takeaways
- Industrial fan sizing should account for both required airflow, typically expressed in CFM, and the total static pressure of the system.
- Oversizing a fan can increase energy consumption, noise, equipment wear, and the need for airflow control.
- Undersizing can result in inadequate ventilation, poor contaminant capture, overheating, or reduced process performance.
- Ductwork, filters, dampers, collectors, elbows, and other system components all contribute resistance that the fan must overcome.
- Operating conditions such as temperature, altitude, gas density, and material in the airstream can affect fan selection.
- Reviewing the complete system and expected operating point is more reliable than selecting a fan based on CFM alone.
Mistake #1: Sizing an Industrial Fan Based on CFM Alone
One of the most common industrial fan sizing mistakes is focusing on cubic feet per minute (CFM) without adequately considering static pressure.
CFM describes the volume of air the fan needs to move. Static pressure represents the resistance the fan must overcome to move that air through the system.
A system may include resistance from:
- Ductwork
- Elbows and transitions
- Dampers
- Filters
- Dust or mist collectors
- Hoods
- Silencers
- Other process equipment
Two systems requiring the same airflow can therefore require very different fans.
For example, moving a given volume of air through a short, relatively unrestricted exhaust system is substantially different from moving that same airflow through long duct runs, multiple elbows, filters, and a dust collector.
The required fan should be selected around the combination of airflow and pressure, not either measurement independently.
Mistake #2: Oversizing the Fan “Just to Be Safe”
Adding extra fan capacity may seem like inexpensive insurance against uncertainty. In practice, significantly oversizing an industrial fan can introduce its own problems.
An oversized fan may produce more airflow or pressure than the system requires. The excess capacity may then need to be controlled with dampers, variable frequency drives (VFDs), or other methods.
Potential consequences include:
- Higher energy consumption
- Increased operating noise
- Unnecessary wear on system components
- Excessive air velocities
- Difficulty balancing the ventilation system
- Higher initial equipment costs
Some design margin can be appropriate, particularly when future system changes are anticipated. The key is distinguishing a reasonable allowance from simply selecting a much larger fan because system requirements are uncertain.
Mistake #3: Underestimating System Resistance
Fan performance depends on the system in which the fan operates.
Every component that changes, restricts, filters, or redirects airflow contributes pressure loss. If those losses are underestimated during industrial fan sizing, the installed fan may fail to deliver the expected airflow.
This problem can become particularly noticeable as systems age. Filters load with particulate, ductwork may be modified, dampers may change position, or additional equipment may be added.
A fan selected for an unrealistically low resistance level may operate at a point quite different from the one originally intended.
That is why understanding the complete airflow path is an important part of fan selection.
Mistake #4: Ignoring the Fan Performance Curve
An industrial fan performance curve shows how a particular fan performs across combinations of airflow and pressure.
The goal is not simply to find a fan capable of reaching the required CFM somewhere on its curve. The expected system operating point should fall within an appropriate and efficient region of the fan’s performance range.
Poor fan selection can result in operation away from the desired point, potentially contributing to:
- Reduced efficiency
- Excessive noise
- Unstable airflow
- Higher power requirements
- Increased vibration or equipment stress
Performance curves also help engineers compare different fan sizes, speeds, wheel designs, and configurations rather than treating all fans with similar CFM ratings as interchangeable.
Mistake #5: Overlooking Actual Operating Conditions
Published fan performance data is based on defined conditions. Actual industrial environments can differ considerably.
Important fan sizing considerations may include:
- Airstream temperature
- Altitude
- Air or gas density
- Moisture
- Corrosive contaminants
- Particulate in the airstream
- Process temperature changes
- Material of construction requirements
High-temperature applications, corrosive processes, or systems handling particulate may require more than an adjustment to fan capacity. They can also affect fan type, construction materials, drive arrangement, and other specifications.
Providing accurate operating conditions during the selection process helps prevent a fan from being specified around assumptions that do not reflect the real application.
Mistake #6: Sizing for Today’s System Without Considering Tomorrow’s
Industrial ventilation systems rarely remain completely unchanged throughout their service life.
A facility may eventually add:
- Another pickup point
- Additional ductwork
- New filtration equipment
- Different process machinery
- Increased production capacity
- New airflow control devices
Future requirements should not automatically lead to installing a substantially oversized fan today. However, known expansion plans should be discussed during the sizing process.
In some applications, selecting an appropriate fan and pairing it with a VFD can provide useful operating flexibility while avoiding the energy penalties associated with continuously running an oversized system at full speed.
What Happens When an Industrial Fan Is Sized Incorrectly?
Incorrect fan sizing can show up as more than an airflow problem.
An undersized or improperly selected fan may leave a facility with insufficient exhaust, weak capture at hoods, inadequate cooling, or poor process ventilation. In dust and fume applications, inadequate airflow can allow contaminants to escape the intended capture area.
An oversized fan can create a different set of issues, including unnecessary power consumption, noise, excessive velocities, and increased control requirements.
These symptoms can sometimes be mistaken for problems elsewhere in the system. Before replacing ductwork, changing hoods, or modifying collection equipment, it can be valuable to determine whether the fan and system are operating at the intended airflow and static pressure.
Information to Gather Before Requesting an Industrial Fan Quote
A more accurate fan recommendation starts with better application information.
When possible, have the following available:
- Required airflow in CFM
- Required static pressure
- Airstream temperature
- Type of gas or air being moved
- Material or contaminants in the airstream
- Existing duct size and configuration
- Motor and electrical requirements
- Indoor or outdoor installation
- Space limitations
- Current fan information for replacement applications
- Expected future system changes
Not every facility will have every answer immediately. Existing drawings, fan nameplate information, photographs, performance measurements, or details about the process can still provide a useful starting point.
Getting Industrial Fan Sizing Right
Glacier Technology works with facilities to evaluate industrial fan requirements and source equipment from established fan manufacturers for a wide range of airflow and process applications. Our industrial fan offerings include centrifugal and axial fan configurations suited to different airflow, pressure, temperature, material, and installation requirements.
We can also help evaluate existing fan system performance, including airflow performance and system static pressure. This can be particularly valuable when an existing fan is not delivering the expected results and the underlying issue is not immediately clear.
Whether you are replacing an existing fan, expanding a ventilation system, or specifying equipment for a new application, careful sizing can help prevent performance problems that are much more difficult to correct after installation.
